A classic weekend programming project is to write a Chip8 emulator. Chip8 refers to an interpreter for a simple instruction set architecture (ISA) that saw use in the 1970s COMSAC VIP microcomputer. You could program the VIP’s CDP1802 processor by writing Chip8 instructions: hexadecimal opcodes that resemble machine code but are more high-level.
This article will discuss a number of sticking points you might encounter when implementing your own Chip8 emulator. Note, the issues discussed here are language agnostic. At the end of the article, you’ll find a link to a Rust implementation of a Chip8 emulator that can serve as a more complete reference.
The Many Forms of Chip8
To start, you’ll want to get your hands on a Chip8 specification. The fun part is that there are many different specifications since Chip8 has seen an evolution over the years.
COMSAC VIP Specification
The most common specification is the original one for the COMSAC VIP. The original specification includes the following components (the listing below comes directly from Tobias’ Chip8 Guide):
- Memory: Chip8 has direct access to up to 4 kilobytes of RAM.
- Display: 64x32 monochrome pixel display.
- A program counter which points at the current instruction in memory.
- One 16-bit index register called “I” which points at locations in memory.
- A stack for 16-bit addresses. The stack plays a role in the implementation of subroutines/functions and returning from them.
- An 8-bit delay timer which decrements at a rate of 60 Hz until it reaches 0.
- An 8-bit sound timer which functions like the delay timer, but which also gives off a beeping sound as long as it’s not 0.
- Sixteen 8-bit general purpose variable registers numbered
0
throughF
calledV0
throughVF
.
The instruction set consists of 35 instructions:
Instruction | Description |
---|---|
0NNN | Execute machine language subroutine at address NNN |
00E0 | Clear the screen |
00EE | Return from a subroutine |
1NNN | Jump to address NNN |
2NNN | Execute subroutine starting at address NNN |
3XNN | Skip the following instruction if the value of register VX equals NN |
4XNN | Skip the following instruction if the value of register VX is not equal to NN |
5XY0 | Skip the following instruction if the value of register VX is equal to the value of register VY |
6XNN | Store number NN in register VX |
7XNN | Add the value NN to register VX |
8XY0 | Store the value of register VY in register VX |
8XY1 | Set VX to VX OR VY |
8XY2 | Set VX to VX AND VY |
8XY3 | Set VX to VX XOR VY |
8XY4 | Add the value of register VY to register VX Set VF to 01 if a carry occursSet VF to 00 if a carry does not occur |
8XY5 | Subtract the value of register VY from register VX Set VF to 00 if a borrow occursSet VF to 01 if a borrow does not occur |
8XY6 | Store the value of register VY shifted right one bit in register VX Set register VF to the least significant bit prior to the shiftVY is unchanged |
8XY7 | Set register VX to the value of VY minus VX Set VF to 00 if a borrow occursSet VF to 01 if a borrow does not occur |
8XYE | Store the value of register VY shifted left one bit in register VX Set register VF to the most significant bit prior to the shiftVY is unchanged |
9XY0 | Skip the following instruction if the value of register VX is not equal to the value of register VY |
ANNN | Store memory address NNN in register I |
BNNN | Jump to address NNN + V0 |
CXNN | Set VX to a random number with a mask of NN |
DXYN | Draw a sprite at position VX , VY with N bytes of sprite data starting at the address stored in I Set VF to 01 if any set pixels are changed to unset, and 00 otherwise |
EX9E | Skip the following instruction if the key corresponding to the hex value currently stored in register VX is pressed |
EXA1 | Skip the following instruction if the key corresponding to the hex value currently stored in register VX is not pressed |
FX07 | Store the current value of the delay timer in register VX |
FX0A | Wait for a keypress and store the result in register VX |
FX15 | Set the delay timer to the value of register VX |
FX18 | Set the sound timer to the value of register VX |
FX1E | Add the value stored in register VX to register I |
FX29 | Set I to the memory address of the sprite data corresponding to the hexadecimal digit stored in register VX |
FX33 | Store the binary-coded decimal equivalent of the value stored in register VX at addresses I , I + 1 , and I + 2 |
FX55 | Store the values of registers V0 to VX inclusive in memory starting at address I I is set to I + X + 1 after operation |
FX65 | Fill registers V0 to VX inclusive with the values stored in memory starting at address I I is set to I + X + 1 after operation |
This article will focus on this version of the spec.
SuperChip8
SuperChip8 is a 1990s extension of the original Chip8 specification. The extension focuses on improving graphic and display capabilities. Here’s a summary of the changes:
- Higher Resolution: SuperChip8 supports a 128x64 pixel display mode.
- High Resolution Toggle: New instructions
00FF
and00FE
enable and disable the high-resolution graphics mode, respectively. - Scrolling: SuperChip8 adds instructions for scrolling the display:
00CN
(scroll down),00FB
(scroll right), and00FC
(scroll left). - Larger Sprites: The existing
DXYN
instruction in SuperChip8 draws 16x16 sprites whenN
is 0. - Larger Fonts: SuperChip8 includes a larger hexadecimal font, 8 pixels wide
and 10 pixels tall, available via the
FX30
instruction. - Exit Instruction:
00FD
lets a program exit the interpreter. - Flag Register Operations:
FX75
andFX85
instructions let you save and load values to and from user flag registers, providing a form of persistent storage.
XO-Chip

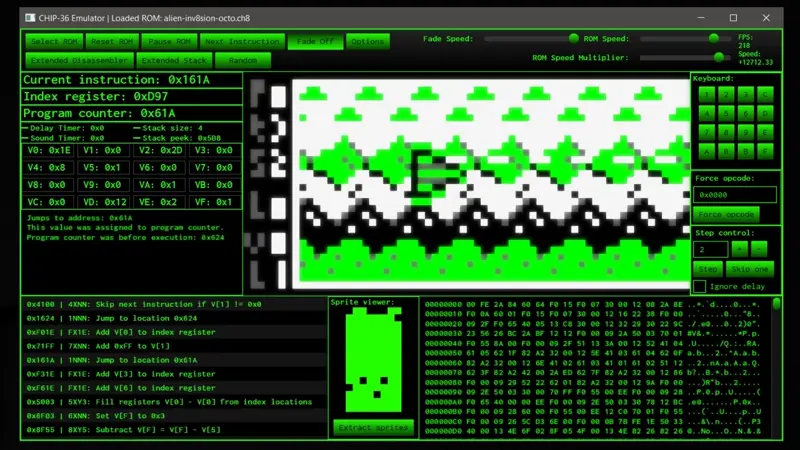

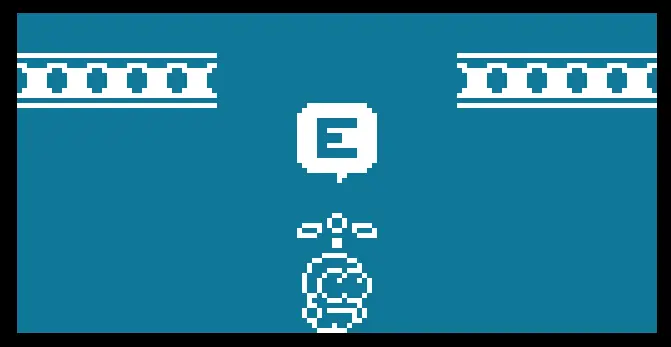

XO-Chip is a modern extension of the Chip8 specification developed by John Earnest in 2014. Below is a excerpt from the “official” chip-8 docs):
XO-Chip supports audio and 64 kilobytes of memory, which is usable mainly for
graphics and audio (addressable only by I
). It also has one extra buffer
(“plane”) of display memory, which works identical to the regular one. Planes
display on top of each other, and they can have different colors. You can draw
illuminated pixels in both planes in another color. Clear, draw and scroll
instructions will only affect the currently selected planes.
XO-Chip is mainly supported by John Earnest’s own Octo assembler, which supports “macros” for comparison operators but which assembles down to regular Chip8 bytecode instead of dedicated instructions.
Instructions
Most Chip8 instructions have a side effect. Instructions alter the state of the
registers, graphic display, timers, or memory. To ease instruction
implementation, make data structures representing each of these components. Give
these structures methods for read-only access and methods for mutating the
state. It makes the code easier to read and removes much of the repetition. See
state.rs
for examples.
Probably the best tip (lifted directly from Tobias’ Guide) for handling
Chip8 instructions is to decode the 16-bit value into a structure like
DecodedInstruction
shown below:
/// Internal structure for holding parsed components of a CHIP-8 instruction.
///
/// This structure breaks down a 16-bit instruction word into its constituent
/// parts for easier access during instruction execution.
struct DecodedInstruction {
/// First nibble. Represents the operation code.
opcode: u8,
/// Second nibble. Used to look up one of the 16 registers.
x: usize,
/// Third nibble. Used to look up one of the 16 registers.
y: usize,
/// Fourth nibble. A 4-bit number.
n: u8,
/// The second byte (third and fourth nibbles). An 8-bit immediate number.
nn: u8,
/// The second, third, and fourth nibbles. A 12-bit immediate address.
nnn: Address,
}
When you process an instruction, you can first decode it into a
DecodedInstruction
which gives easy access to the components of the
instruction. During execution, you can access the desired component without
performing bitwise operations to read the values.
The final and most crucial tip regarding instructions is to make sure to read the specification two to three times! The extra 2-3 minutes spent reading the spec will save you hours of debugging later.
The Run Loop
Now the Chip8 emulator run loop is for the most part straightforward. The emulator executes at 60 Hz. This means the display and timers update at a rate of 60 times per second.
How many instructions run per second? Now that’s the tricky part. The original Chip8 processor ran at 1 MHz. That doesn’t tell you much since the Chip8 instructions take a different number of cycles to run. Many Chip8 implementers target an Instructions Per Second (IPS) rate of 700. This seems to work best for most Chip8 games. Ideally, you want to make the IPS value configurable so that the User can adjust it as needed.
Below is some pseudocode illustrating the run loop:
FRAMES_PER_SEC = 60
IPS = 700
INSTRUCTIONS_PER_FRAME = IPS / FRAMES_PER_SEC
last_time = 0
loop:
curr_time = get_current_time()
if curr_time - last_time >= 1 / FRAMES_PER_SEC:
for _ in range(INSTRUCTIONS_PER_FRAME):
fetch_instruction()
decode_instruction()
execute_instruction()
update_timers()
render_display()
last_time = curr_time
Testing Your Emulator
If you’re like most programmers, your emulator will have bugs. Luckily, there are a number of test ROMs that you can run to verify your implementation.
This is where Timendus’s Chip8 Test Suite saves the day. Timendus provides ROMs that test drawing, flag handling, quirks, and more. See the project’s README for instructions along with helpful screenshots illustrating what to expect for each test.
Conclusion
Writing a Chip8 emulator is an excellent introduction to emulation development.
The simplicity of the Chip8 instruction set makes it approachable for beginners,
while implementation quirks and timing considerations provide enough depth to
keep things interesting. Start with the original COSMAC VIP specification,
implement instructions methodically using the DecodedInstruction
pattern, and
use test ROMs like Timendus’s suite to verify your work. Once complete, you’ll
have gained valuable experience in instruction decoding, memory management, and
graphics rendering that applies to more complex emulation projects.
The complete project source is available on GitHub under chip8.
