colorbot

A previous article explored writing rsbot, a scriptable auto clicker meant to automate training the most repetitive skills in RuneScape. As a recap, that bot would take as input a script defining click events where each click event includes an ID, click box, and delay range. The bot would continuously execute each event. Executing an event means randomly clicking within the click box and waiting a random amount of time within the delay range. Bonus points, rsbot mouse movements look human.

rsbot works well. It allowed a main account to level fletching, firemaking, herblore, crafting, and many other skills to 99 without catching even a temp ban. However, certain skills require more than just an “intelligent” auto clicker. For example, when training fishing, the fishing spot occasionally moves. Or when woodcutting, you want to know when the tree gets cut and immediately move to cutting another tree. The common thread amongst these skills is that the resources aren’t completely static. The bot needs to react to random in game events.

A desire to continue botting tedious skills motivates the development of colorbot. Much like rsbot, colorbot is scriptable meaning you can write scripts to bot whichever skill you like. The key difference is that instead of hard coding click boxes, colorbot uses color recognition to guide its clicks.

Color Recognition

The color recognition aspect of the bot is stupid simple. The process is:

1. Take a screenshot.
2. Find all pixels in that screenshot matching a target color.
3. Click one of those pixels at random.

That’s it. No fancy graph algorithms, probability, nothing. Of course, there are a couple gotchas with this approach.

First, you must specify a color tolerance. You might get the color of a pixel in game and then find that the bot can’t detect it because you moved the camera slightly. Shadow and lighting effects can change the color of a pixel. The solution is to specify a color and a tolerance. The tolerance applies to each RGB component of the pixel. The algorithm matches any pixel within tolerance.

Second, you may find that many objects on screen share the same color as your target leading to false positives. One solution is to make the colors of the objects distinctive. Most objects’ pixels have color components with mixed values. What you want is to have “unique” colors with respect to the common colors in the game. For example, red \((255,0,0)\), green \((0,255,0)\), and cyan \((0,255,255)\) don’t occur in RuneScape. You might ask, if they don’t occur, how can you use these colors as targets? You can leverage features of the game client to make a viable solution. This article provides examples of how to do this.

Performance

You want the color detection process to be quick. rsbot is a Python script. Screen capturing and iterating over all pixels in a \(1920x1080\) image is noticeably slow in Python. Rather than optimizing the Python code, it’s easier to translate the useful parts of rsbot to a compiled language. colorbot is a Rust application but any other compiled language such as C or C++ would work just as well.

A benefit of using Rust is its package manager, Cargo. With Cargo, it’s straightforward to install a cross platform screen capture library. colorbot uses the scrap crate to take screenshots. Below is the bulk of the color matching code:

/// Captures the screen and finds all pixels matching a target color within a tolerance
pub fn get_pixels_with_target_color(
    target_color: &(u8, u8, u8, u8),
) -> Result<Vec<Point>, Box<dyn std::error::Error>> {
    // Get the primary display
    let display = Display::primary()?;
    let width = display.width();
    let mut capturer = Capturer::new(display)?;
    let mut matches = Vec::new();
    const TOLERANCE: u8 = 10;

    loop {
        // Try to capture a frame
        if let Ok(frame) = capturer.frame() {
            // Iterate over the pixels
            for (i, pixel) in frame.chunks(4).enumerate() {
                // Pixels are in BGRA format
                let b = pixel[0];
                let g = pixel[1];
                let r = pixel[2];
                let a = pixel[3];

                if color_matches((b, g, r, a), *target_color, TOLERANCE) {
                    // Calculate pixel coordinates
                    let x = i % width;
                    let y = i / width;
                    matches.push(Point::new(x as f64, y as f64));
                }
            }

            break; // Exit after one frame
        }
    }

    Ok(matches)
}

The code iterates over the BGRA pixels in the screenshot and checks if each pixel matches the target color. After finding a match, the code stores the pixel’s coordinates in a vector. The function returns the vector of matching pixels. For an \(M \times N\) image, this function has a time complexity of \(\mathcal{O}(MN)\). Not winning any performance awards but it’s fast enough for this purpose.

Scripting

Scripting is one of the most important features of colorbot. The bot accepts a JSON file containing a list of click events. Each click event has a string ID, a list of color components, and a list representing the post-click delay range. Below is an example script for fishing:

{
  "events": [
    {
      "id": "lure fish",
      "color": [252, 23, 35],
      "delay_rng": [75000, 80000]
    },
    {
      "id": "drop fish 1",
      "color": [171, 32, 253],
      "delay_rng": [100, 200]
    },
    {
      "id": "drop fish 2",
      "color": [171, 32, 253],
      "delay_rng": [100, 200]
    },
    ...
  ]
}

The script demonstrates three events. The first, lure fish, clicks a fishing spot and waits between \(75000\) to \(80000\) milliseconds. The other events click to drop a fish in the inventory and wait between \(100\) to \(200\) milliseconds. The delay exists to accommodate certain long actions. The delay varies to avoid detection by Jagex’s bot detection system. Disclaimer, it’s unknown whether randomizing mouse gestures, delays, etc. actually helps but it’s better to be safe than sorry.

Leveraging Game Client Features

It would be disingenuous to say that colorbot is a completely standalone bot. For it to work, you need to use some plugin features of the game client. Specifically, the RuneLite game client.

The first critical plugin is the NPC Indicator plugin. NPC Indicator highlights NPCs on screen. You can customize the colors and the highlight styles. Here’s a short video from the developer’s demonstrating how it works:

RuneScape has many surprising elements that register as NPCs. For example, fishing spots are all NPCs! Configure the plugin and your colorbot script to use colors which don’t occur in the game such as pure red, green, etc. This guarantees you’ll accurately click the object you’re interested in.

What if you want to click non NPC objects? You can mark arbitrary objects using the Object Markers plugin. You can customize the color and highlight style here as well:

Just shift click the object you want to mark and select the color and additional options from the pop-up menu.

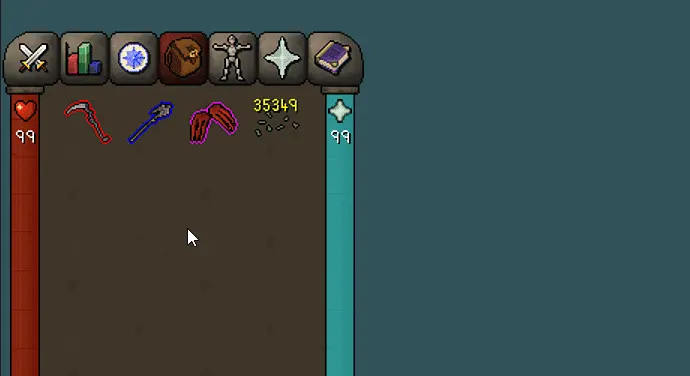

Next up, coloring items in your inventory. For this, the Inventory Tags plugin is useful. Checkout this short clip demoing usage:

Finally, the Menu Entry Swapper plugin lets you avoid right clicking and searching through menus. This is useful in many ways. For example, say you want to drop an inventory of logs. You can set the left click option on logs to “drop.”

Configuring four plugins alongside colorbot might sound like a lot of work. However, you’ll find that spending \(45\) minutes to an hour configuring the bot is much less painless than manually skilling for \(200\) hours or more. Below is an example of a fishing script in action (note, the video is a bit slow since the PC was overloaded at the time of recording):

The NPC Indicator Plugin highlights the fishing spots red. The Inventory Tags Plugin highlights the fish in the inventory purple. colorbot runs a fishing script which uses the information on screen to click a luring spot and drop fish in the inventory. This script ran \(12\) hours a day for close to a month on the journey from \(67\) to \(99\) fishing. You can do the math on how many hours that saved.

Conclusion

colorbot demonstrates how color-based automation can be both simple and effective. While this approach has limitations, it works well for basic for automating some skills with random elements in RuneScape. Client plugins play a crucial role in this setup. Without plugins to highlight key elements with distinct colors, colorbot would be unable to reliably identify and interact with game objects.

The complete project source is available on GitHub under colorbot.
